Clash Detection Services That Catch Every Conflict Before It Costs You

Eagle BIM delivers expert clash detection services for AEC firms across the USA. We run systematic hard and soft clash detection across all discipline models in Navisworks, assign resolution ownership, track every fix, and deliver a fully cleared coordination record before construction begins.

Send Your Models → Discuss Your Project ↓
Hard Clash Detection Soft Clash Detection Navisworks MEP Clash Detection 48hr First Report
Hero Visual
0 +
Clash Reports Delivered
0 Days
Quote & Plan Turnaround
0 %
Clashes Re-Tested After Fix
0
Clash Types Detected
Clash Detection Services

Clash Detection Services That Find Every Conflict Before the Field Does

Eagle BIM delivers clash detection services that systematically test all discipline models against each other — architectural, structural, MEP, and civil — and surface every hard clash, soft clash, and workflow conflict before a single component reaches the site. Clashes that pass undetected become RFIs, change orders, and schedule delays. Our clash detection services exist to make sure they do not. Our BIM clash detection process runs in Navisworks Manage with discipline-specific tolerance rules, clearance requirements, and priority filters applied before any report is produced. We de-duplicate results, filter out false positives, and deliver a clean, actionable clash report with every issue categorized, ownership assigned, and a resolution path defined. Whether you need standalone clash detection on a single model set, ongoing coordination clash testing across a multi-stage project, or MEP clash detection focused on mechanical and electrical routing through a complex ceiling zone — Eagle BIM runs it accurately, on time, and with full documentation of every decision made.
Critical - Hard Clashes
Two elements physically occupying the same space — a duct through a structural beam, a pipe through a wall without a sleeve. Hard clashes must be resolved before construction. They cannot be worked around on site without significant cost.
Important - Soft Clashes
Elements that do not physically intersect but violate required clearance zones — insufficient maintenance access to equipment, MEP services too close to structural elements, or inadequate ceiling zone depth for the specified finishes.
Constructability - Workflow Clashes
Sequencing and constructability conflicts — elements that are geometrically clear but cannot be installed in the required construction sequence without removing previously installed components or violating trade access requirements.
What We Deliver

Core Clash Detection Service Areas

Every clash detection services engagement covers the full scope — from model intake through final clearance confirmation. Here is what is included.
Hard and Soft Clash Detection
Full hard and soft clash testing across all discipline model pairs using Navisworks Manage. Discipline-specific tolerance rules and clearance requirements applied before each test run. Results filtered, de-duplicated, and categorized before delivery — so every item in the report is actionable.

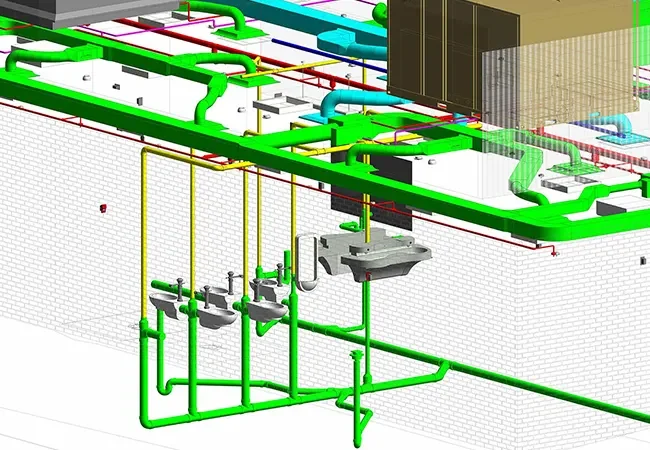

MEP Clash Detection
Dedicated MEP clash detection covering mechanical ductwork, electrical conduit, plumbing runs, fire suppression, and HVAC systems — tested against architectural and structural models with ceiling zone clearance verification included. Clash ownership assigned to the responsible MEP discipline for every issue.
Federated Model Clash Testing
Multi-discipline federated model assembly in Navisworks — architectural, structural, MEP, and civil models linked with verified shared coordinates. All discipline pair combinations tested systematically. Federated NWD file maintained and updated throughout the coordination program.
Clash Reports and Issue Logs
Structured clash detection and resolution reports with 3D snapshots for every issue, severity ratings, discipline ownership assignments, and resolution status. Delivered in PDF and XLSX at every coordination milestone — formatted to your project standards and BEP reporting requirements.
Clash Resolution Tracking
Every clash is tracked from first detection through final verification. Resolution responsibility is assigned, deadlines are set, model updates are reviewed, and every fixed clash is re-tested before closure. Nothing is marked resolved without confirmation — a complete audit trail is maintained throughout.
Ongoing Coordination Clash Testing
Recurring clash detection services across a project lifecycle — run at agreed coordination milestones as models are updated. Each round re-tests previously resolved clashes and tests new model revisions. Clash counts, resolution rates, and open items tracked across every round in a consolidated project log.
Our Process

How Our Clash Detection Services Work

Every clash detection in construction project follows the same structured process. Clear stages, clear ownership, no surprises.
01
Model Intake
We receive all discipline models, verify shared coordinates and naming conventions, and set up the federated Navisworks environment. Clash rules and clearance tolerances agreed before the first test runs.
02
Clash Testing
Hard and soft clash tests run across all discipline pairs. Results are filtered, de-duplicated, and categorized by severity, discipline, and grid location. Only actionable clashes reach the report.
03
Report Delivery
Structured clash report delivered with 3D snapshots, severity ratings, and ownership assignments. Presented to the coordination team with clear resolution paths and deadlines for every open item.
04
Re-Testing
Models updated by discipline teams. We re-run clash detection to verify all resolutions and identify any new conflicts introduced by model changes. Cycle continues until all clashes are cleared.
05
Final Clearance
Final clash-free confirmation report delivered with complete resolution log, updated NWD, and full audit trail from first detection through final clearance — ready for handover or construction start.
Start a Clash Detection Project →
Clash Detection in Construction

Where Clash Detection Services Find the Most Conflicts

The same areas of a building generate the majority of clashes on every project. Our clash detection in construction process focuses testing intensity where conflicts are statistically most likely — ceiling zones, structural penetrations, plant rooms, and riser shafts — so nothing slips through.

68% Ceiling Zone Conflicts
MEP services competing for ceiling zone depth — ducts, pipes, conduit, and sprinklers all fighting for the same 400mm of space above the ceiling.
21% Structural Penetrations
MEP services routing through structural beams, columns, and slabs without coordinated openings or sleeves specified in the structural model.
7% Plant Room Density
Mechanical plant rooms with high MEP density and limited maintenance clearance — equipment, pipework, and electrical switchgear all competing for space.
4% Riser Shafts
Vertical riser shafts with multiple disciplines — plumbing stacks, mechanical risers, electrical busbar trunking — coordinated through structural openings.
Deliverables

What You Receive from Our Clash Detection Services

Clash Detection Report
Full clash report with 3D snapshots, severity ratings, discipline ownership, and resolution status for every issue — PDF and XLSX, formatted to your project standards.
Clash-Free Federated NWD
Updated Navisworks federated model with all disciplines verified, shared coordinates confirmed, and final clash-free status recorded.
Resolution Log and Audit Trail
Complete record of every clash from first detection through resolution — ownership, deadline, model update confirmation, and re-test result for every item.
Coordination Drawings and Exports
Coordination section cuts, penetration schedules, and IFC/DWG exports for consultant packages — all derived directly from the coordinated model.
NWD PDF XLSX DWG IFC BKF

Ready to Run Clash Detection on Your Models?

Send us your model files and discipline list. Our team will review your setup and return a clear coordination plan and a detailed quote within 2–3 business days.

Send Your Models
DISCUSS YOUR CLASH DETECTION NEEDS
Detailed quote & coordination plan within 2–3 business days
All discipline pairs tested — nothing missed
Every clash re-tested after resolution
Full audit trail delivered with final package
Why It Matters

What Proper Clash Detection Services Prevent on Your Project

Every undetected clash that reaches the site costs money, time, and credibility. Here is what our clash detection services consistently prevent.
80%
Fewer Field RFIs
Projects with properly executed clash detection services resolve the vast majority of coordination conflicts before construction — not through costly field RFIs and emergency design changes on site.
Zero
Undetected Hard Clashes
Our process tests every discipline pair combination in every zone of the model. Nothing is assumed clear without being tested — hard clashes do not pass through to the site on our watch.
100%
Documented Resolution
Every clash detected, every resolution confirmed, every re-test passed — fully logged. Your project has a complete clash detection and resolution audit trail ready for any dispute or claim.
4x
Faster Issue Resolution
Issues resolved in a coordinated 3D environment with clear ownership and deadlines are resolved in hours. The same issue discovered on site takes days — with multiple parties, a GC, and usually a change order involved.
Tools and Software

Navisworks Clash Detection and the Platforms We Use

We work in the platforms your project already uses — no tool lock-in, no migration requirements.

Autodesk Navisworks
Revizto
Autodesk Revit
BIM 360 / ACC
Bluebeam
Industries We Serve

Clash Detection Services Across Every Project Type

Our clash detection services are calibrated to the coordination complexity and MEP density of each project type.

Commercial Office
High MEP density coordination for office buildings and mixed-use towers — ceiling zone clash detection across all disciplines, with particular focus on open-plan floors with exposed services.
Healthcare Facilities
Mission-critical clash detection in construction for hospitals and medical facilities — where coordination failures have direct implications for patient safety, infection control compliance, and commissioning schedules.
Data Centers
High-density MEP clash detection for data centers where power, cooling, and structured cabling systems demand millimetre-level coordination accuracy before any installation begins.
Industrial and Manufacturing
Process piping, structural steelwork, and heavy electrical coordination clash detection for manufacturing plants and industrial facilities with complex multi-discipline installation sequences.
Multi-Family Residential
Repetitive floor plate clash detection services — coordinate once per plate type and apply efficiently across every level, maximising coordination value on high-rise residential and mixed-use towers.
Education and Institutional
Multi-building campus clash detection with phased construction management — BIM clash detection that aligns with tight academic programme schedules and complex phasing requirements.
Hospitality
Guest room repetition coordination, back-of-house MEP clash detection, and facade coordination for hotel and resort developments with tight ceiling zones and demanding MEP specifications.
Infrastructure and Civic
Underground utility clash detection, structure-to-civil coordination, and MEP routing verification for transport, civic, and infrastructure projects with complex below-ground coordination requirements.
Service Area

BIM Services Across the United States

We deliver BIM modeling and coordination services nationwide, with deep project experience in Texas and major metros across the USA. Remote collaboration, local code knowledge, and your time zone — wherever you build.

Primary Region · Featured Service Area

BIM Services in Texas

Based in Pflugerville, TX — Eagle BIM serves the Texas market with unmatched depth. Houston, Dallas, Austin, San Antonio, Fort Worth, and across the state. We understand Texas building codes, permitting workflows, and the fast-paced commercial and industrial construction environment that drives the state's AEC market.

California
Los Angeles · San Francisco · San Diego · Sacramento · San Jose
New York
New York City · Buffalo · Albany · Rochester
Florida
Miami · Orlando · Tampa · Jacksonville · Fort Lauderdale
Illinois
Chicago · Springfield · Aurora · Naperville
Washington
Seattle · Spokane · Tacoma · Bellevue
Massachusetts
Boston · Cambridge · Worcester · Springfield
Colorado
Denver · Colorado Springs · Boulder · Aurora
Georgia & More
Atlanta · Charlotte · Nashville · Phoenix · Las Vegas
Related Services

BIM Services That Work Alongside Clash Detection

Architectural BIM Services
Revit architectural modeling and construction documentation — a clean, coordinated architectural model is the foundation of effective clash detection in construction.
→
BIM Consulting Services
BIM Execution Plans and coordination workflow strategy — the BEP and clash detection protocols that define how your project manages clashes from day one.
→
BIM Coordination Services
Full multi-discipline coordination — federated model management, clash detection, issue resolution, and coordination drawings across the full project lifecycle.
→
MEP BIM Services
Mechanical, electrical, plumbing, and fire protection modeling built for coordination and fabrication — the discipline where the majority of clashes originate.
→
FAQs

Frequently Asked Questions

Ask Us Anything →
What is clash detection in BIM and why is it important?
+
Clash detection is the process of identifying geometric conflicts between building disciplines — like a duct passing through a structural beam or a pipe conflicting with a ceiling grid — inside a federated 3D model, before construction begins. Clash detection services typically catch hundreds or thousands of conflicts that would otherwise surface as RFIs, change orders, and field rework. Catching them in the model costs almost nothing; catching them on site costs weeks and serious money.
What is the difference between hard clashes and soft clashes?
+
A hard clash is a physical overlap — two objects occupying the same space, like a beam cutting through a duct. A soft clash is a clearance violation — objects that don't physically touch but violate required separations, such as a pipe within 6 inches of an electrical panel where code requires 36 inches of clearance. Comprehensive clash detection services test for both: hard clashes catch geometric conflicts, soft clashes catch maintenance access, code compliance, and operational issues.
Which software is best for BIM clash detection?
+
Autodesk Navisworks Manage is the industry-standard tool for BIM clash detection — federating models from Revit, AutoCAD, Tekla, and other platforms, then running automated clash tests with Clash Detective. Revizto and Solibri Office are also widely used for issue tracking and BCF exchange. Our clash detection services use Navisworks for testing and Revizto or BIM 360 / ACC for issue management — matched to whatever your team already runs.
How many clashes are normal on a typical project?
+
First-run clash detection on a moderately complex commercial building can flag 500–2,000 clashes — and on a healthcare or lab project, that number can run into the thousands. This is not a sign that something is wrong; it means coordination hasn't started yet. Well-managed clash detection services typically resolve 80–90% of clashes within the first 2–3 coordination cycles, with the remainder narrowed to genuine constructability decisions rather than oversights.
How do you prioritize and group clashes in a Navisworks report?
+
Raw Navisworks output is overwhelming — running everything against everything produces thousands of low-value results. Effective clash detection services apply a clash matrix (rules defining which disciplines test against which) and group clashes by location, type, and trade ownership. Each clash is categorized as critical (must-fix), important (should-fix), or minor (review), and assigned to the responsible trade with a 3D snapshot and resolution note. This converts a clash report from raw data into an actionable issue log.
Who is responsible for resolving the clashes once they are detected?
+
Clash detection services identify and document conflicts; resolution is owned by the responsible trade based on the BIM Execution Plan. Typically MEP reroutes around fixed structural elements, structural avoids fixed architectural openings, and architectural adjusts when ceiling zones need more clearance. The clash detection team facilitates — assigning issues, tracking status, and re-testing after fixes — but the design decision belongs to the discipline making the change.
How long does clash detection take on a typical commercial project?
+
Clash detection itself is fast — running a Navisworks clash test takes minutes. The value-creating work is in setup (clash matrix, selection sets, rules), review (filtering false positives, grouping issues), and the coordination cycles that follow. For a typical commercial project, the first comprehensive clash detection cycle takes 5–10 business days from federated model receipt to delivered clash report; subsequent weekly cycles run 2–3 business days each as issues are progressively cleared.
What deliverables do you provide with clash detection services?
+
Every clash detection cycle includes a Navisworks federated file (.nwd), a structured clash report (PDF or Excel) with categorized issues and 3D snapshots, a BCF or NWD issue export for stakeholder review, an action log assigning issues to trades, and a revision-tracked update from the previous cycle. We also provide coordination meeting minutes and post-meeting issue updates so the project record is fully auditable.
