Scan to BIM Services
We specialize in scan to BIM services that help architects, engineers, and contractors convert real and existing conditions of the buildings and facilities into accurate and detailed 3D BIM models. Our scan to BIM experts has years of experience in working on renovation, retrofit, historic preservations projects or as-built documentation which brings quality value to every project.
Specialized Scan to BIM company
Refined Scan to BIM for Better Visualization
A refined scan to BIM workflow includes laser scanning, reality capture technology and BIM tools collaborate and provide the realistic visualization to design intent and the existing conditions of the building. Therefore, having a specialized scan to BIM company like Eagle BIM follows a refined scan to BIM process that transforms point cloud data into precise and detailed BIM model.
We create an accurate Revit model from point cloud data for your renovation project planning.
We create detailed 3D models from scan to assist with your retrofitting changes seamlessly.
We provide BIM models that keep digital record of your building’s current conditions and for facility management.
We create detailed BIM models from laser scan data to capture every meticulous detail of heritage buildings.
Services We Do
Our Scan to BIM Workflow – Step by Step
We perform scan to BIM for renovation, retrofit, facility management, or simply convert an existing 3D scan files into detailed BIM model.
Receive Point Cloud Data
We receive the cleaned point cloud files from the scanning team in formats like .RCP, .RCS, .E57, .LAS, or .PTS
Project Understanding
A quick kickoff session to understand the building type, purpose of model (renovation, FM, documentation) and required LOD.
Project Setup
We set up the Revit project with correct coordinate system, levels, grids to make sure it is aligning with project coordinates.
Convert Point Cloud to BIM
We create detailed architectural, structural, MEP models from the point cloud scan data to match existing site conditions.
Quality Checks
Run model audit, clash detection, correction, verifying accuracy as per point cloud, BIM standards and client expectations.
Deliver the Model
With final approval, we deliver the Revit model package in .RVT, .IFC., PDF., DWG formats, ready to integrate in project workflow.
Why choose

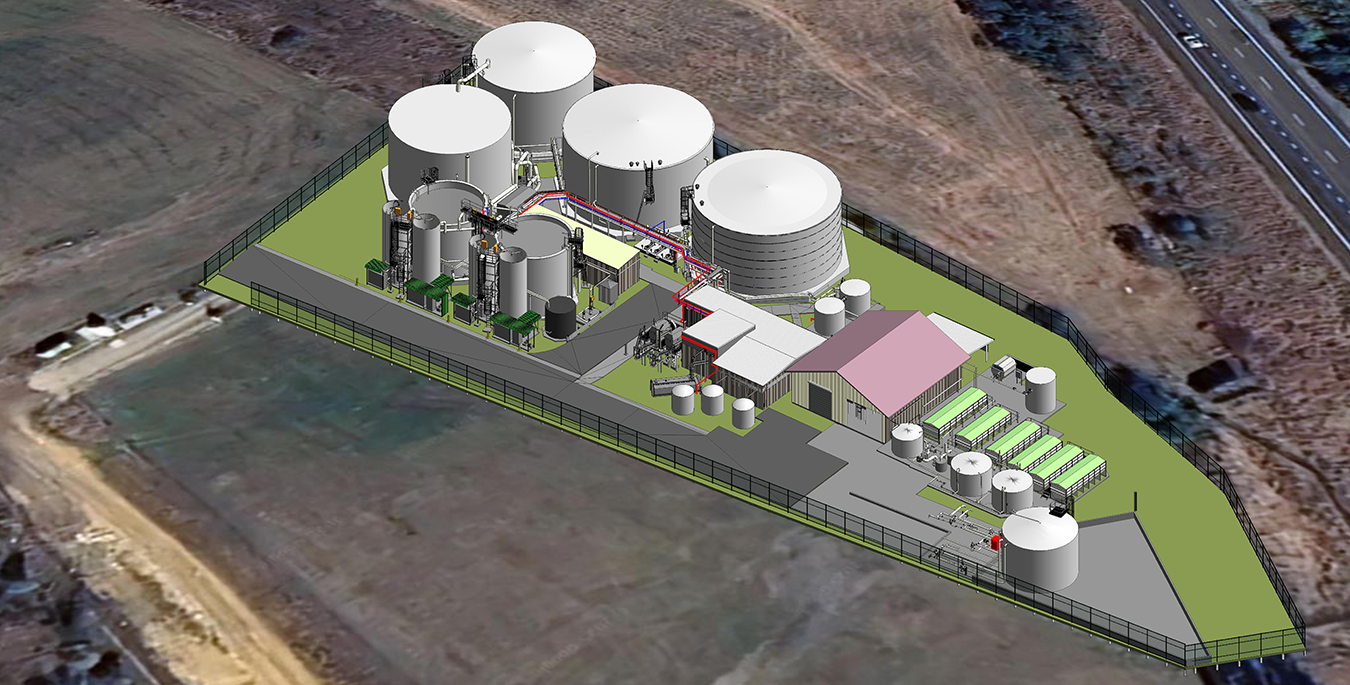

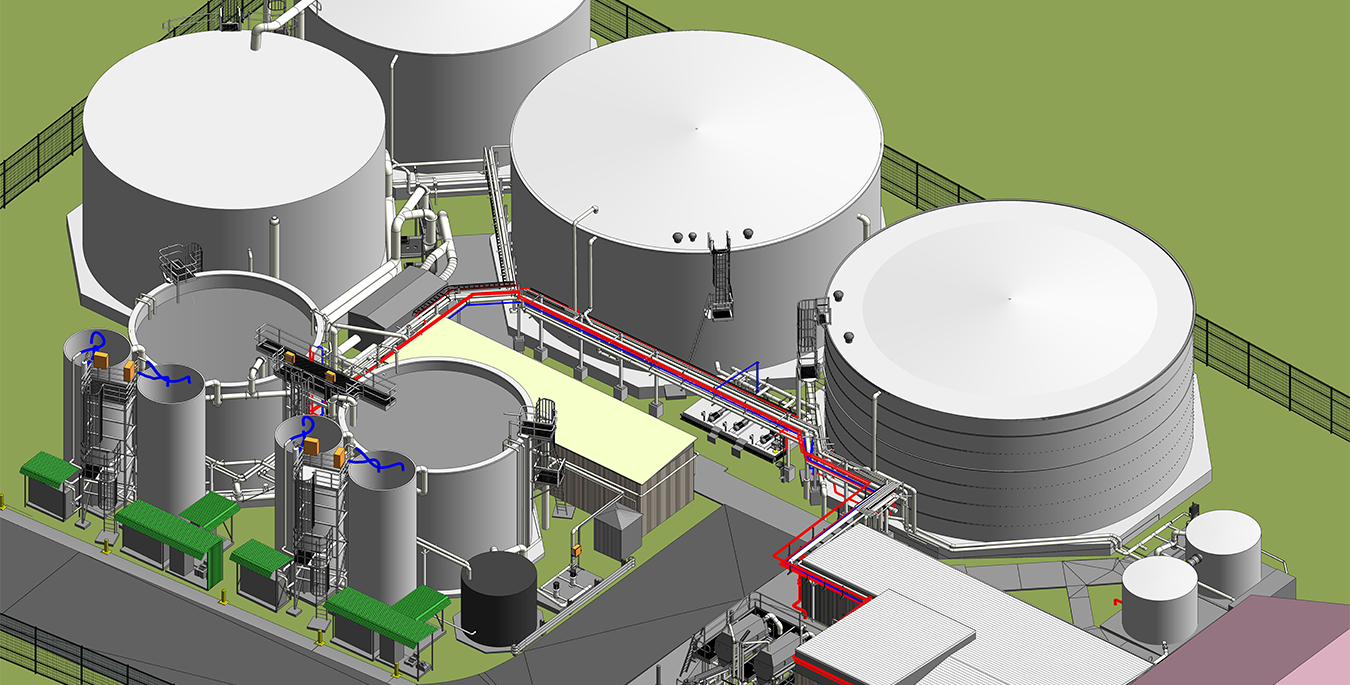

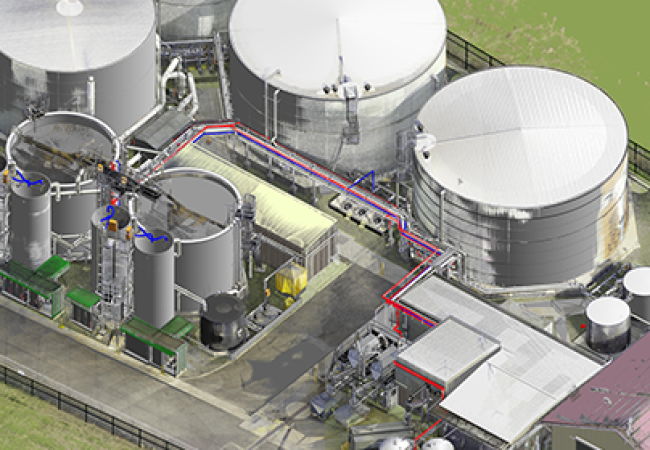

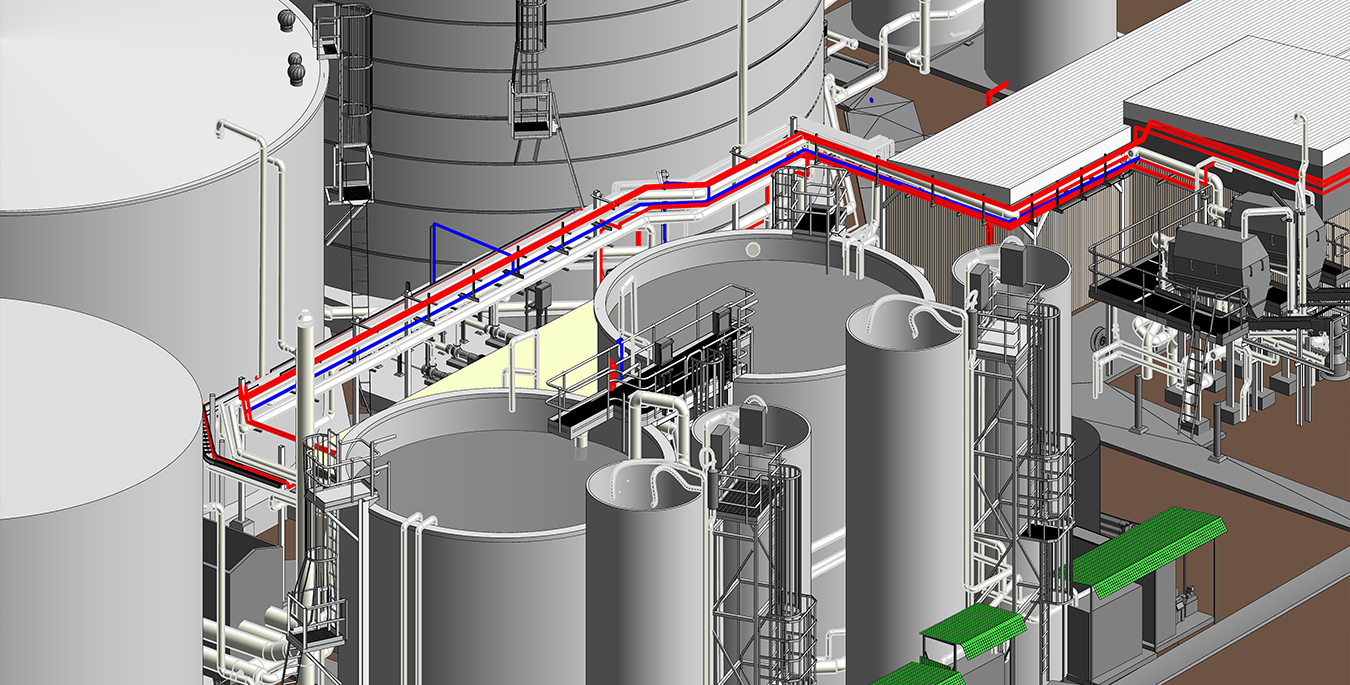

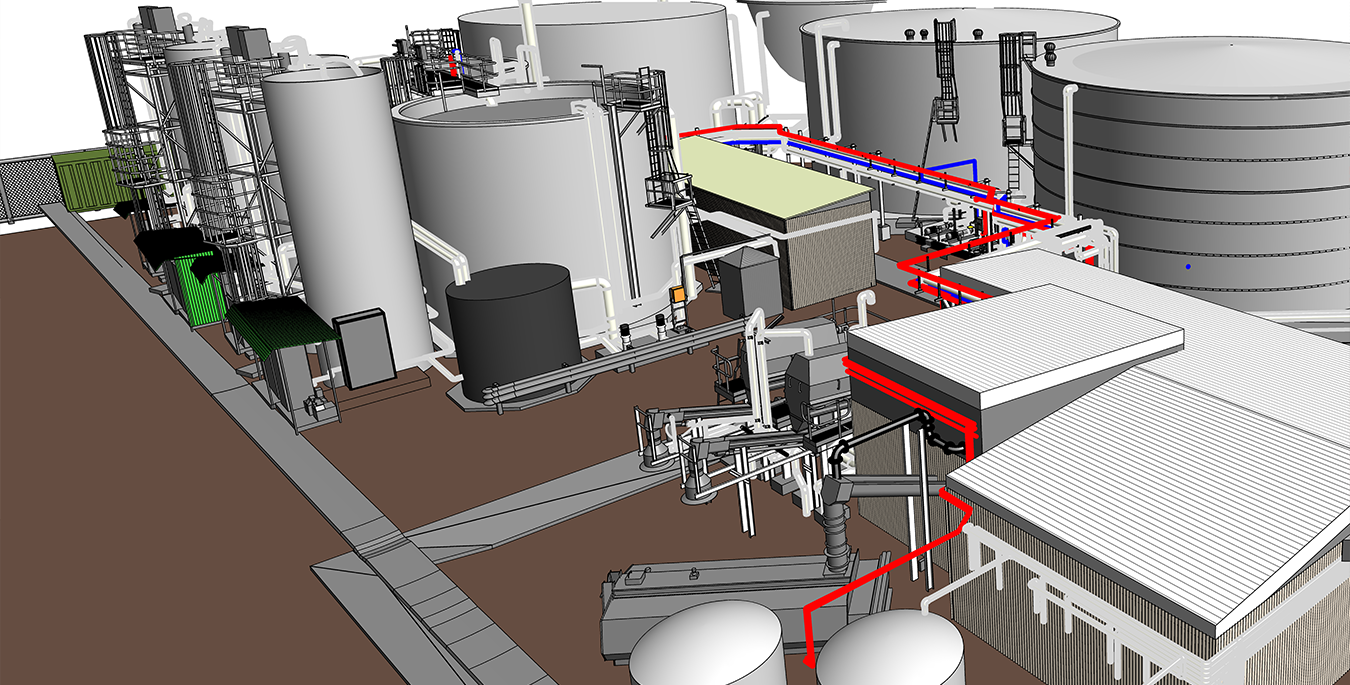

Point Cloud Scan to BIM Project for Sewage Water Treatment Plant
Produced accurate as-built BIM model from scan point cloud data of an existing sewage water treatment plant for future maintenance, retrofitting and expansion planning.
The Model Includes
- Current Physical condition of the plant - Accurate detailing of structural and MEP systems
Have Questions?
Frequently Asked Questions About Scan to BIM Services
Scan to BIM is a process of capturing physical conditions using 3D laser scanning point cloud data which is then converted into a detailed BIM model.
It provides as-built models which enhance efficiency, save time, save costs and provide accuracy in projects like retrofit, renovation, facility management, and heritage building.
